Ex :1


Test of GUI-1 using signals input, signals output, and rondom fonctions, surf and plot fonctions, and many output signals control's,…

Exemple :1


Le test de GUI-1 l'utilisation de signaux dans l'entrée, la traitement de signaux  dans le sortie et  fonctions rondom, surfe et le fonctions gui et beaucoup de contrôle de signaux de sortie, …

Ab:1


Test von GUI-1 gebrauchender (benutzender) Signaleingang, Ausgangssignale, und rondom fonctions, Brandung und Grundstück fonctions, und viele Produktion (Output) gibt Kontrolle Zeichen electronschien , …

geben Sie Eingängen und Ausgangssignalen, treetement Eingangssignale und Signals Zeichen, das Produktionen (Outputs) bearbeitet.


Fig-1 design Template and options

Fig-2 output signal fonction random with 5 signals.


++Fonction defenition and creation of MATLAB by using GUI file, with  default options or
with axis options.

+it creates this m.file in matlab with a fig output related to this m.file.

+ Fonction defenition und Schaffung (Gestaltung) von MATLAB, GUI Datei mit Unterlassungsoptionen gebrauchend (benutzend), oder mit Achse-Optionen.
es schafft diesen m.file in matlab mit einer Abb-Produktion(Abb-Output) verbunden mit diesem m.file.

+++ Le Fonction définition et  le création en MATLAB en utilisant GUI fichier (dossier), avec d'options par défaut ou avec options d'axe x et y ou x, y et z.

Il a développé ce m.file dans matlab avec une production de figure liée à ce m.file.

function varargout = GUIsimple24sig(varargin)
% GUISIMPLE24SIG MATLAB code for GUIsimple24sig.fig
%      GUISIMPLE24SIG, by itself, creates a new GUISIMPLE24SIG or raises the existing
%      singleton*.
%
%      H = GUISIMPLE24SIG returns the handle to a new GUISIMPLE24SIG or the handle to
%      the existing singleton*.
%
%      GUISIMPLE24SIG('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in GUISIMPLE24SIG.M with the given input arguments.
%
%      GUISIMPLE24SIG('Property','Value',...) creates a new GUISIMPLE24SIG or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before GUIsimple24sig_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to GUIsimple24sig_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help GUIsimple24sig

% Last Modified by GUIDE v2.5 28-May-2017 13:21:26

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @GUIsimple24sig_OpeningFcn, ...
                   'gui_OutputFcn',  @GUIsimple24sig

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

+This Part for electronic and microelectronics engineers from 1 year experience until many years of experiences.

+Dieser Teil für elektronische und mikroelektronische Ingenieure von 1 Jahr Erfahrung bis viele Jahre Erfahrung.

+Cette partie pour les ingénieurs en électronique et en microélectronique depuis une année d'expérience jusqu'à de nombreuses années d'expérience.

+++So Firstly i will  speak with you in applications with A Graphic user interface ( GUI ) in Matlab,
you know in matlab you can do a project using a GUI by vide (default) or using axis x,y (2Dimensions) or using axis x,y,z
(3 dimensions)

+++Donc Premièrement je parlerai avec vous dans des applications avec une Interface utilisateur graphique (GUI) dans Matlab, vous savez dans matlab vous pouvez faire un projet utilisant un GUI par vide (le défaut) ou utilisant l'axe x, y (2 Dimensions) ou utilisant l'axe x, y, z (3 dimensions)

+++So Erstens werde ich mit Ihnen in Anwendungen mit Einer Graphischen (Anschaulichen) Benutzer-Schnittstelle (GUI) in Matlab sprechen, Sie wissen (kennen) in matlab Sie können ein Projekt tun, das einen GUI durch siehe (Unterlassung) oder Verwenden-Achse x, y (2 Dimensions) oder Verwenden-Achse x, y, z (3 Dimensionen) gebraucht (benutzt)

Example 2:


Fig-3 about 24 input, output signals control and timing tests

Here i show you about 24 fonctions in input signals and output signals using a graphic user interface (GUI) of matlab, you can develop a sine wave signal with constraints of timing, power and amplitude, also all trignomatric signals studing there behavior in timing and power consumption (cos, sec, cosec, tan, sinc, sind, tanc, ......)

Also you can make a 3 dimension surf or mesh graphics using GUI in MATLAB,....many applications for engineers control, test, and constraints of signals behaviors.

Ici je vous montre environ 24 fonctions dans des signaux d'entrée (de saisie) et des signaux de sorties utilisant une interface utilisateur graphique (GUI) de matlab, vous pouvez développer un signal  de sinus avec les contraintes de temps (contrôle de temps), (leurs puissances) et leurs amplitudes, aussi tous les signaux trigonométrique étudiant là le comportement dans leurs temps et la consommation électrique (cos, la seconde, cosec, le bronzage, sinc, sind, tanc......)

Aussi vous pouvez faire un 3 surf de dimension ou prendre au filet le graphisme utilisant GUI dans MATLAB, .... beaucoup d'applications pour le contrôle d'ingénieurs, le test et les contraintes de comportements de signaux.


Hier zeige ich Ihnen ungefähr 24 fonctions in Eingang signalisieren und Produktionssignale, die eine graphische(anschauliche) Benutzer-Schnittstelle (GUI) matlab gebrauchen(benutzen), Sie können ein Sinus-Welle-Signal mit Begrenzungen des Timings, Kraft und Umfanges entwickeln, auch der ganze trignomatric gibt studing dort Verhalten in Timing und Leistungsverbrauch (Lattich, sec, cosec, Lohe, sinc, sind, tanc......) Zeichen

Auch Sie können eine 3 Dimensionsbrandung machen oder Graphik verwickeln, die GUI in MATLAB.... viele Anwendungen für Ingenieur-Kontrolle, Test, und Begrenzungen des Signalverhaltens gebraucht(benutzt).


Fig-4 sine wave signal with a panel detection and option.

Here i show you 1 option of The GUI in matlab is using a axis detection which give a point exact in x-axis and y-axis, you can put this option in GUI application as this example or another option
like rotate, zoom in and zoom out...

Ici je vous montre 1 option du GUI dans matlab utilise une détection d'axe qui donne un point exact dans des axes des abscisses et des axes des ordonnées, vous pouvez mettre cette option dans l'application GUI comme cet exemple ou une autre option comme tournent le figure, font un zoom et font un zoom arrière ...

Hier zeige ich Ihnen 1 Wahl(Option) Des GUI in matlab gebraucht(benutzt) eine Achse-Aufdeckung, die einen Punkt genau in X-Achse und Y-Achse geben, können Sie diese Wahl(Option) in GUI Anwendung stellen, wie dieses Beispiel oder eine andere Wahl(Option) wie, Steilflug in und Steilflug daraus rotieren...


Fig-5 another sine wave with another timing and amplitude contraints

Now i will show you the last thing of today practice for our engineers in electronics and microelectronics engineering which is a 3 dimension graph using a mesh and surf controls fonctions GUI of MATLAB.

Maintenant je vous montrerai la dernière chose la pratique(le cabinet) d'aujourd'hui pour nos ingénieurs dans l'électronique et l'ingénierie de microélectronique qui est un 3 graphique de dimension utilisant une maille et un ressac(surf) contrôle fonctions GUI de MATLAB.

Jetzt werde ich Ihnen die letzte Sache(Ding) der heute Praxis für unsere Ingenieure in Elektronik und Mikroelektronik-Technik zeigen, die ein 3 Dimensionsgraph ist, der ein Ineinandergreifen gebraucht(benutzt) und Brandung fonctions GUI von MATLAB kontrolliert.

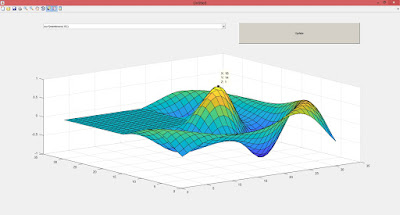

         Fig-7 a 3-dimension with x,y,z detection anywhere on the graph

Merci je souhaite ce site vous aidez mes amis dans l'électronique et microélectronique bancs de test.

thank you and i hope this site or article help you in more constraints in timing, power, and mixed signal test bench.

Danke und ich hoffe, dass diese Seite oder Artikel Ihnen in mehr Einschränkungen in Timing, Power und Mischsignal Prüfstand helfen.
